Open figures ↗TET10 structural mesh convergence

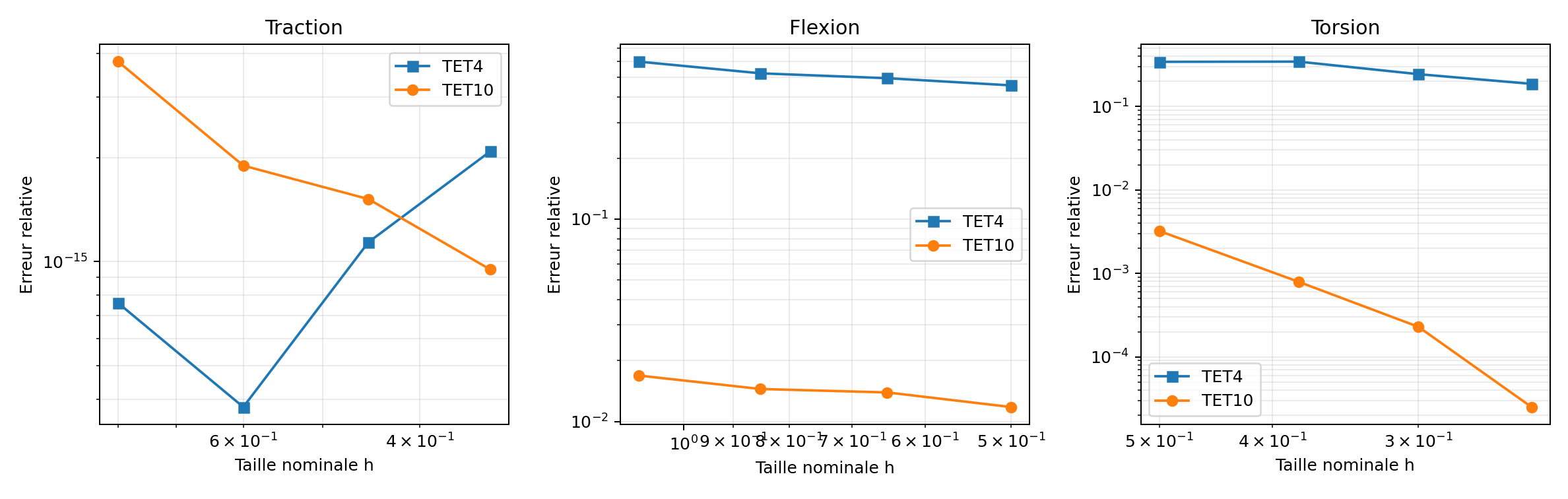

Four deterministic mesh levels compare traction, cantilever bending and circular shaft torsion against analytical references.
TET10 bending error1.179%Timoshenko beam reference, finest mesh
Demonstrations · calculation cases
Follow each result back to its method.
Browse deformation fields, mode shapes, mesh studies and solver comparisons as separate calculation cases. Each dossier identifies the model, method, measured values, source files and limits. These are recorded results from the repository, not new calculations from this website.
01 · 4 calculation cases
Linear solids and vibration
Mesh refinement, deformed shapes, modes and one same-mesh solver correlation.
Open figures ↗
Open figures ↗TET10 cantilever bending shape
A TET10 cantilever deformation view tied to the same bounded bending study as the mesh convergence curve.
Display amplification40,800×Visualization scale only
Open figures ↗TET10 first bending mode

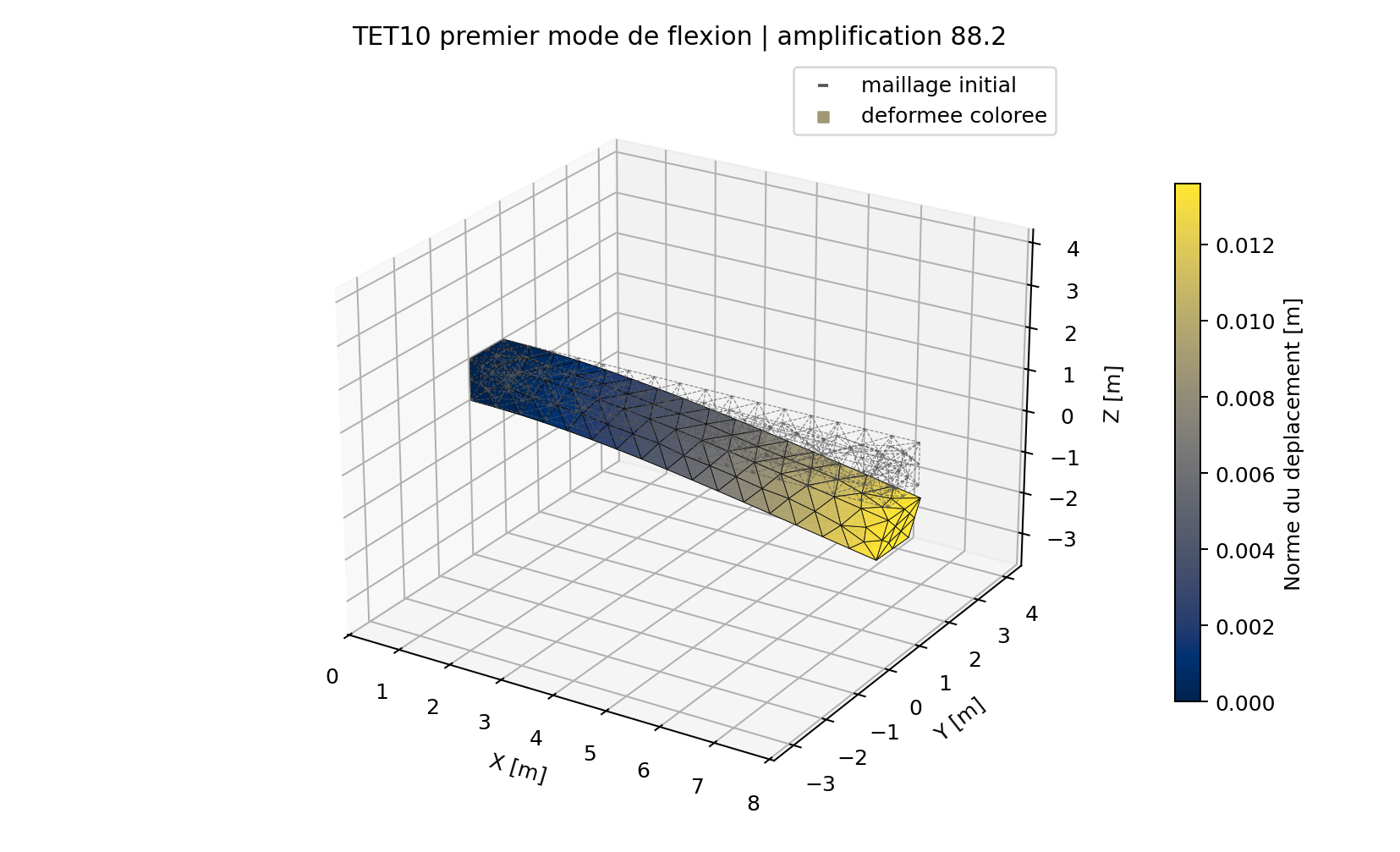

The first bending mode is compared with the Euler–Bernoulli frequency for the recorded cantilever model.
First bending frequency pair12.7961 / 12.7965 HzEuler–Bernoulli: 12.8519 Hz

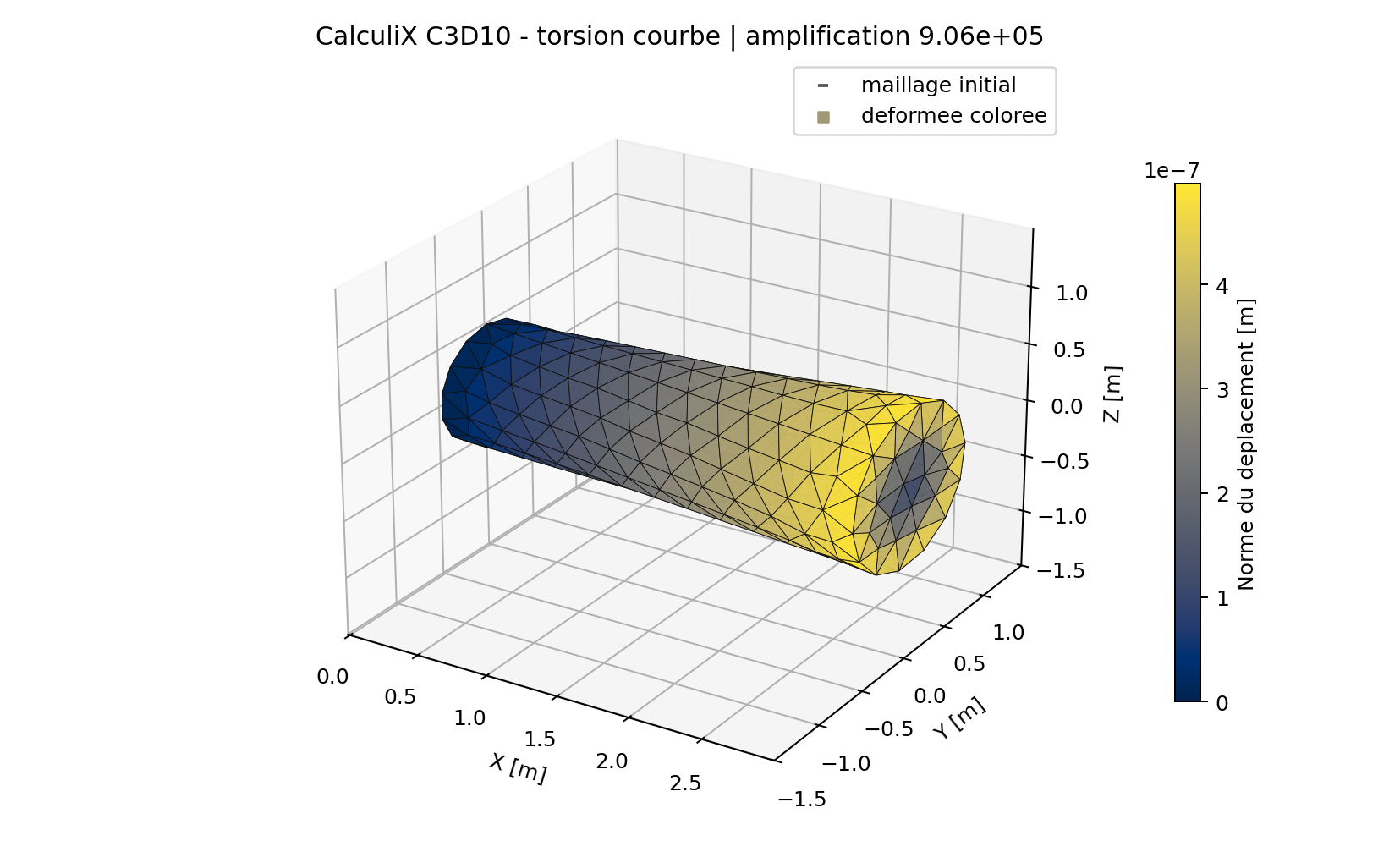

Open figures ↗TET10 torsion field correlation with CalculiX
QF Solver and CalculiX 2.20 use the same curved C3D10 connectivity, coordinates, supports and nodal loads.
Relative full displacement field difference6.84 × 10⁻⁵QF Solver vs CalculiX 2.20
02 · 3 calculation cases
Finite strain and stability
An affine finite-strain patch, linearized buckling and imperfect postbuckling paths.
Open figures ↗TET4 affine finite-strain patch

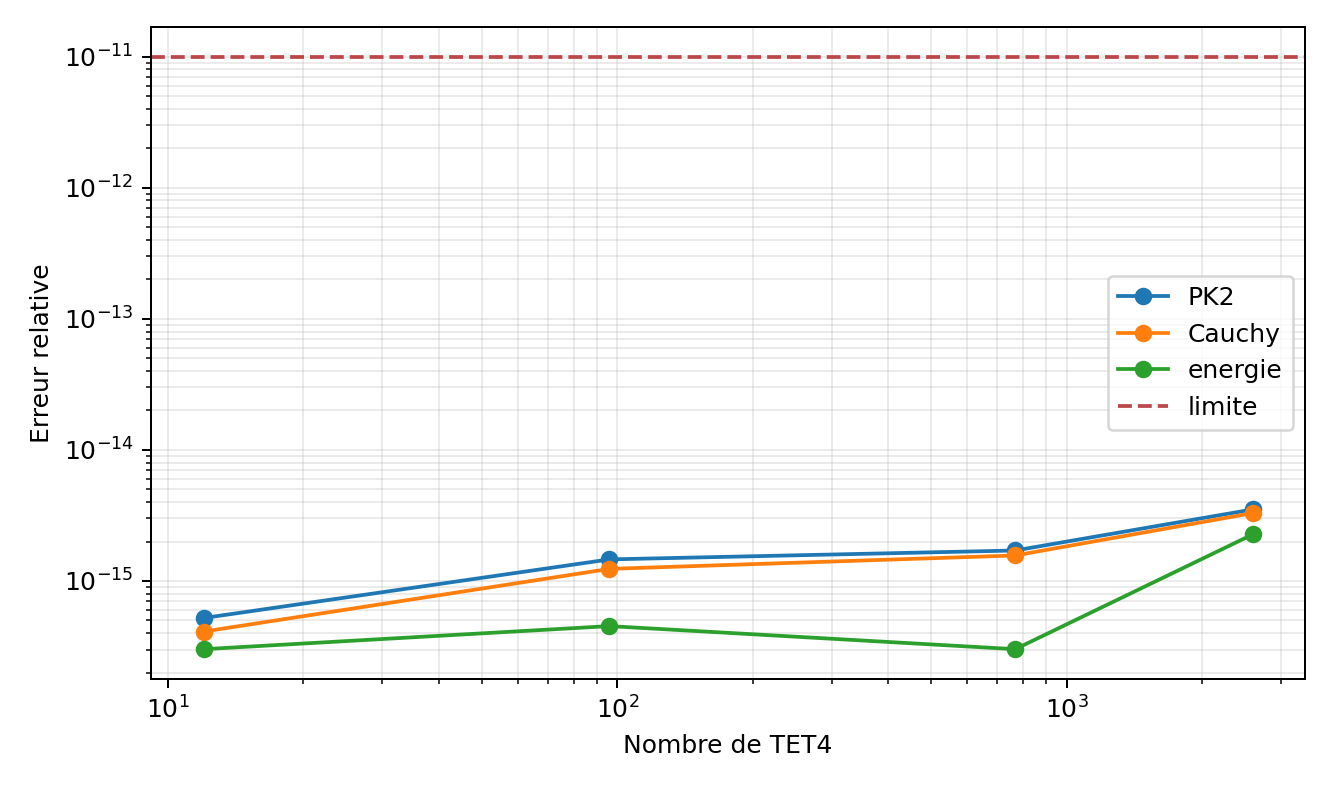

An affine deformation checks Green–Lagrange strain, PK2 and Cauchy stress transformations, strain energy and positive Jacobian behavior.
Observed patch error≈ 10⁻¹⁵Floating point scale shown in the source plot
Open figures ↗TET4 linearized buckling refinement

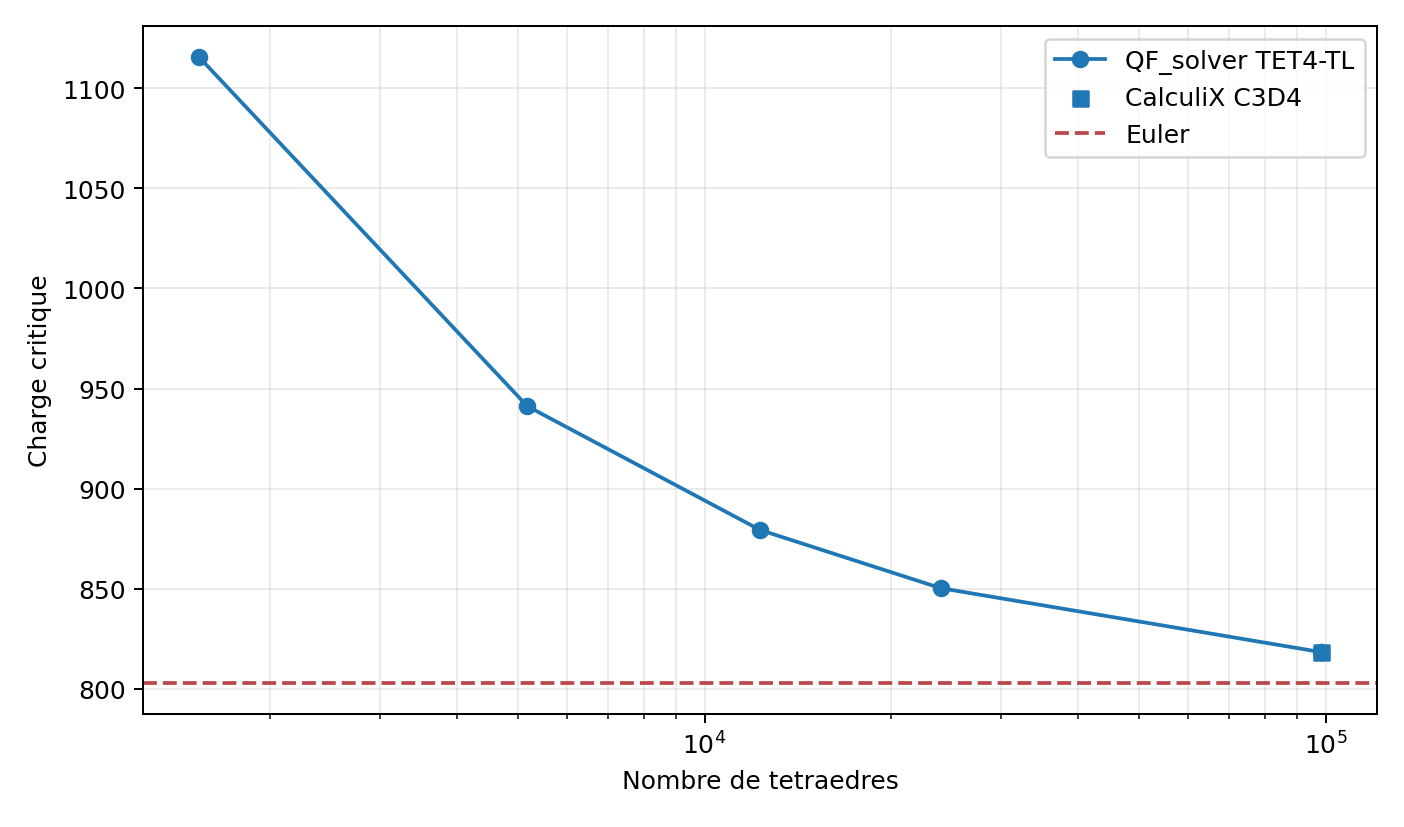

A fixed-free column study tracks the critical eigenvalue as a linear TET4 mesh is refined and compares one case with CalculiX.
QF Solver critical load818.415402Largest recorded mesh; source does not state units
Open figures ↗TET4 imperfect postbuckling paths

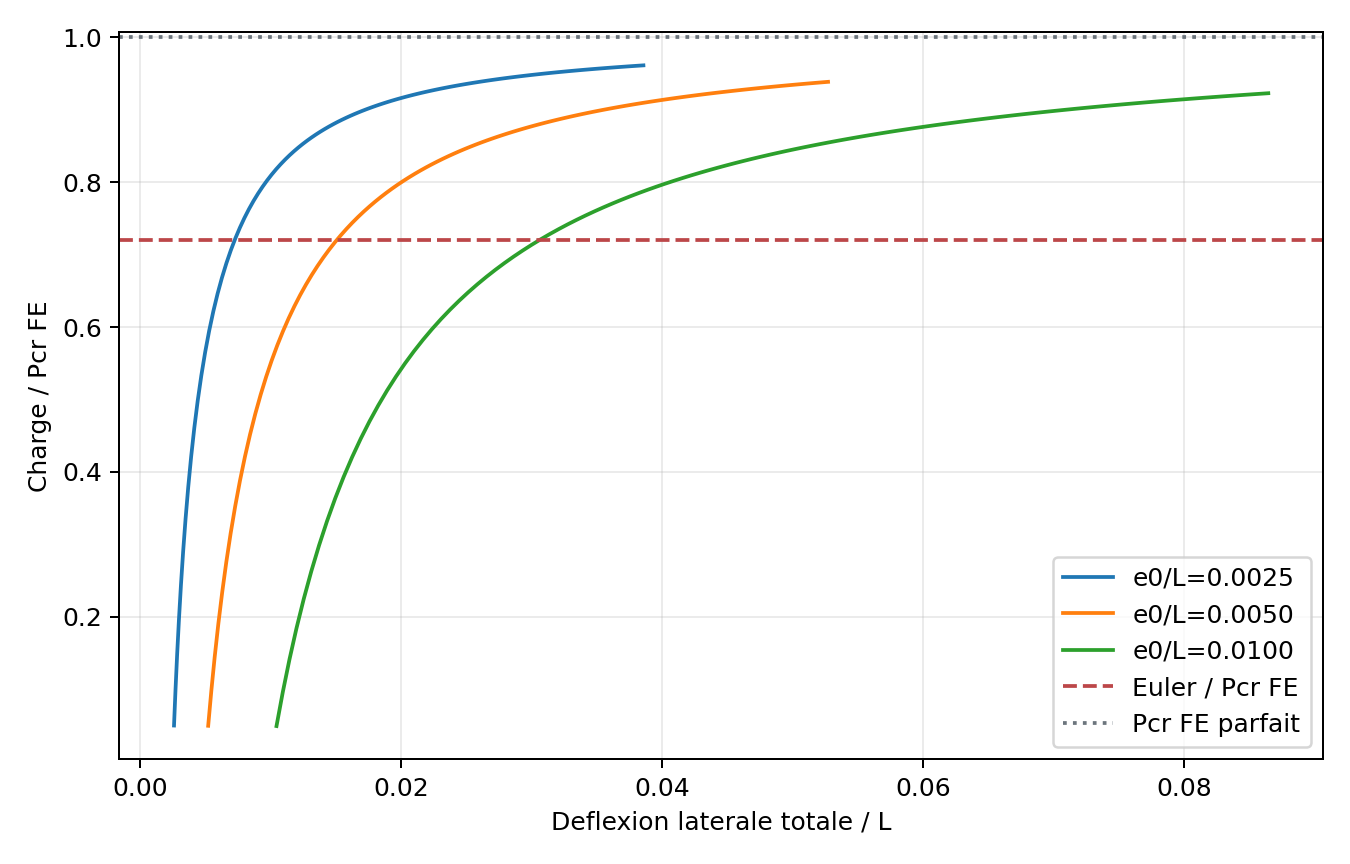

Continuation tracks load against lateral deflection for three imperfect column shapes.
Initial imperfection amplitudes0.0025 / 0.005 / 0.01Three separately plotted paths
03 · 2 calculation cases
Orthotropic solids
Material direction, mesh refinement and bounded external field correlations.
Open figures ↗Orthotropic solid mesh convergence

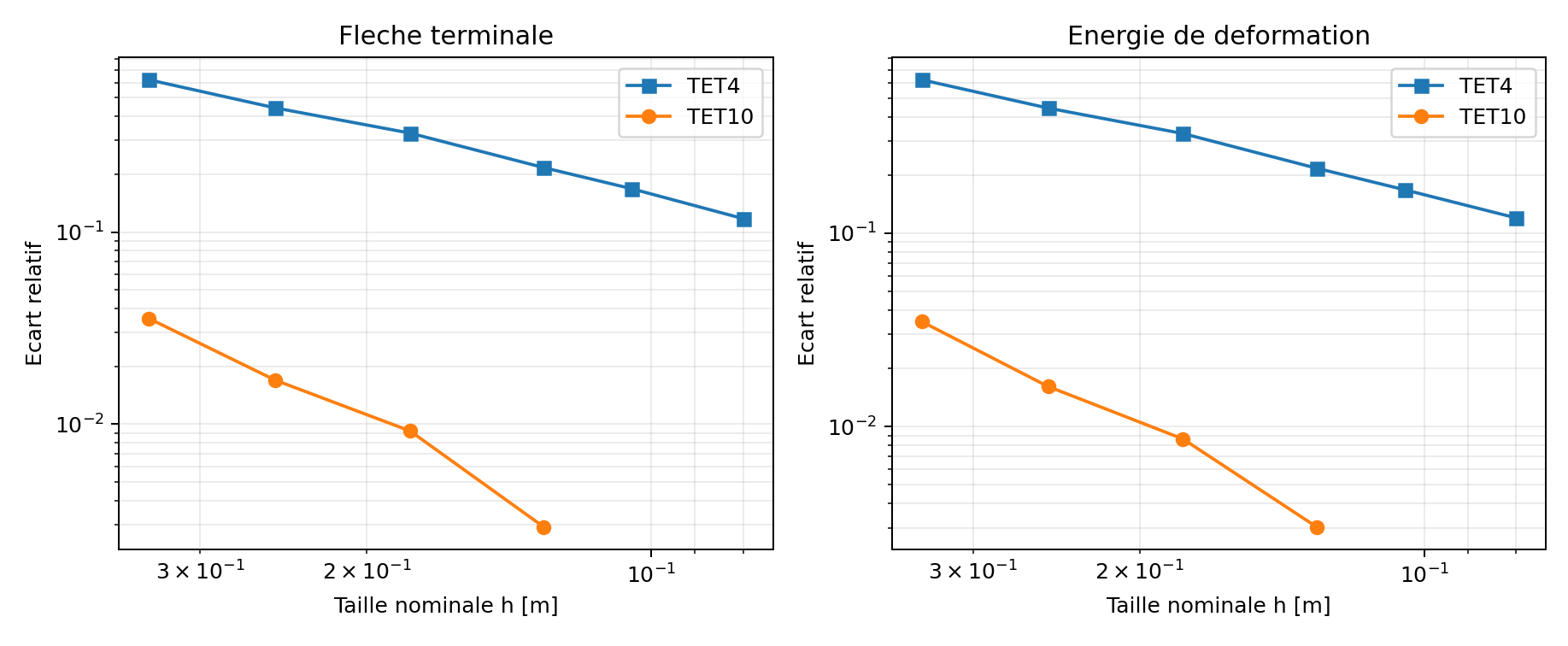

TET4 and TET10 converge on an off-axis orthotropic cantilever with a fixed 30 degree material direction.
TET10 deflection error0.292%Fine TET10 numerical reference
Open figures ↗Orthotropic bracket and perforated specimen correlation

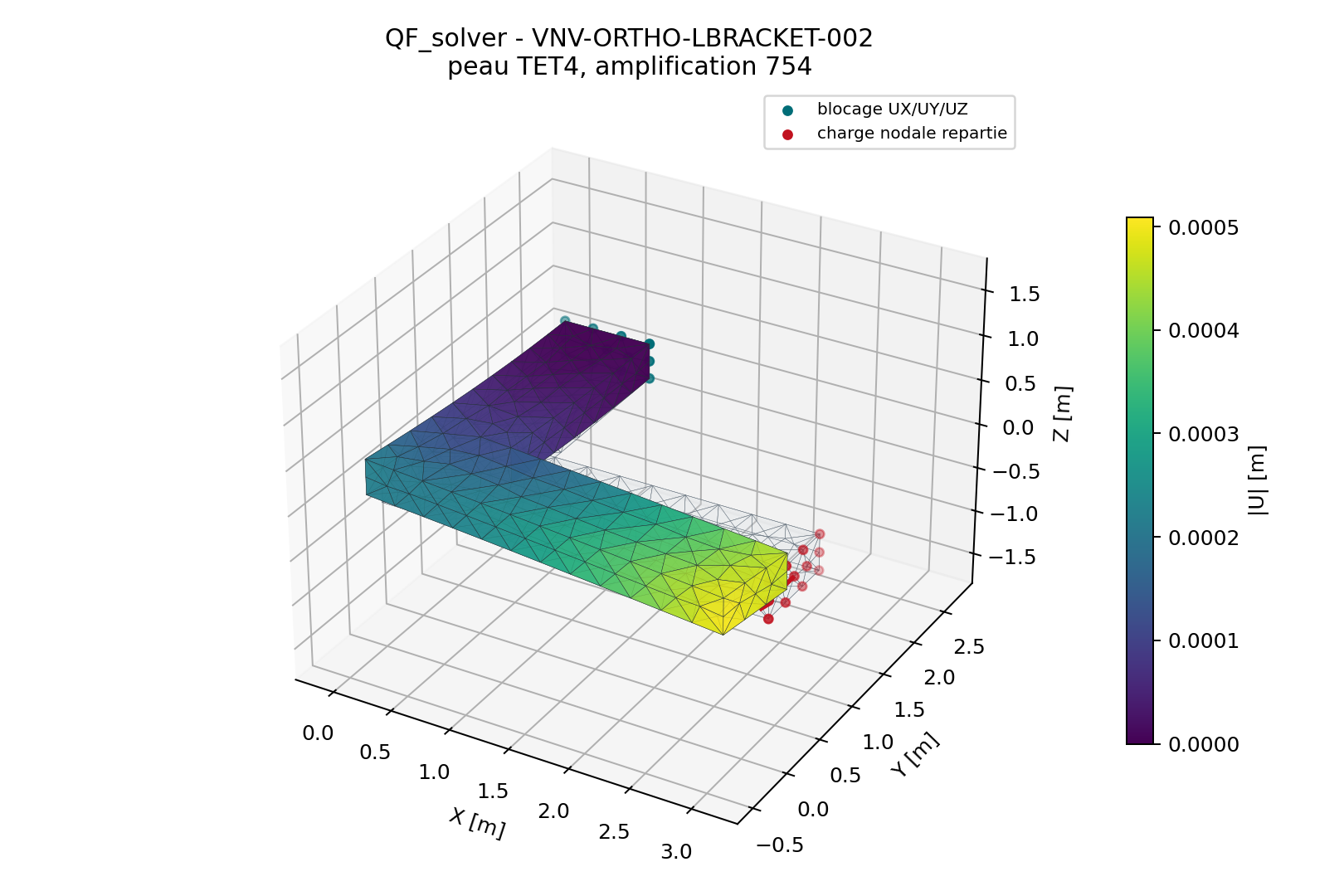

Two same-mesh three-dimensional orthotropic cases compare displacement fields with CalculiX and Code_Aster.
Perforated field difference0.000132% / 3.60 × 10⁻¹¹%CalculiX / Code_Aster
04 · 1 calculation case
Laminated shell benchmark
A draft NAFEMS R0031 correlation with Code_Aster and its open review status.
Open figures ↗NAFEMS R0031 laminated shell correlation

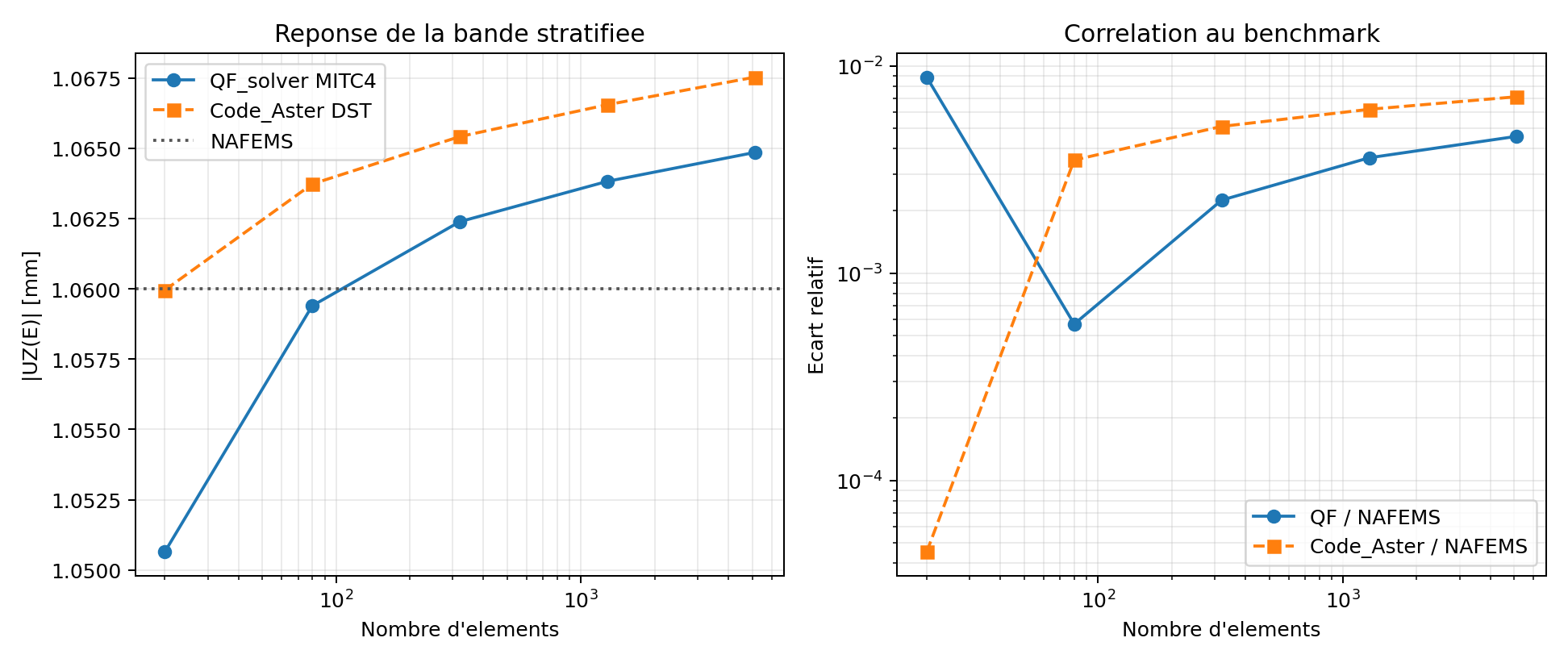

Five mesh levels compare transverse displacement at point E for a laminated strip in three-point bending.
QF Solver UZ at point E−1.064851 mmFinest mesh: 5,120 elements; target −1.06 mm
Evidence and provenance
Results keep their original context.
Figures come from repository snapshot e367fe5. Each case links to its report and, where available, the script used to reproduce the campaign. The execution version belongs to the original record. Showing a result on the current site does not mean it was rerun for release 0.2.11.
